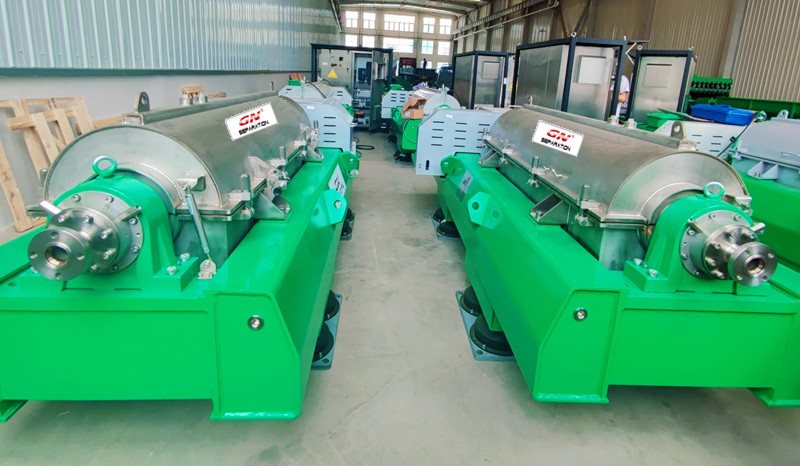

When the GN Solid Control GNLW364 Horizontal Decanter Centrifuge is used in overseas crystal salt dewatering projects, it demonstrates its efficient, stable, and environmentally friendly performance. Here is a detailed introduction to the specific application of this centrifuge in the project:

Equipment Overview:

Model: GNLW364 Horizontal Decanter Centrifuge
Purpose: Overseas crystal salt dewatering project
Manufacturer: GN Solid Control

Technical Features:

Material: The bowl of the GN centrifuge is made of SS2205 duplex stainless steel through centrifugal casting. The screw conveyor is also made of stainless steel, and carbide alloy inserts are embedded in the part that contacts the solid phase to enhance wear resistance. Tungsten carbide carbide alloy bushings are installed at the slag discharge port to ensure wear resistance and extend service life.

Drive System:

It adopts a fully hydraulic drive system supported by a well-known brand of centrifugal hydraulic drive systems. This system uses a motor to drive the oil pump to form two oil paths for driving the hydraulic motor and hydraulic differential, ensuring stable operation of the equipment even under high-temperature environments.

Control System:

The centrifuge control box is embedded with a PLC control system and equipped with an HDMI human-computer interaction interface. Operators can visually view various operating parameters of the centrifuge and quickly modify parameters at the operation terminal to achieve the desired separation effect. All electrical components in the electrical control box are sourced from internationally renowned brands.

Application Effect:

Separation Effect: The GNLW364 Horizontal Decanter Centrifuge can effectively separate solid-liquid mixtures in crystal salt dewatering projects, achieving the purpose of crystal salt dewatering.

Operational Stability:

The combination of the fully hydraulic drive system and the PLC intelligent control system enables the centrifuge to maintain a high degree of stability during operation, ensuring the continuity and high efficiency of the project.

Environmental Performance:

GN Solid Control has always been committed to the research and application of environmental protection technologies. The GNLW364 Horizontal Decanter Centrifuge fully considers environmental protection factors in its design and manufacturing, ensuring the environmental performance of the equipment.

Customized Services:

As a professional manufacturer of solid-liquid separation and conveying equipment, GN Solid Control has years of industry experience in solid-liquid separation. The company can provide customized products and solutions based on customers’ actual needs, solving problems encountered in customers’ actual production. In summary, the GN Solid Control GNLW364 Horizontal Decanter Centrifuge has demonstrated excellent technical performance and stable operation results in overseas crystal salt dewatering projects, making it an ideal choice for crystal salt dewatering projects.

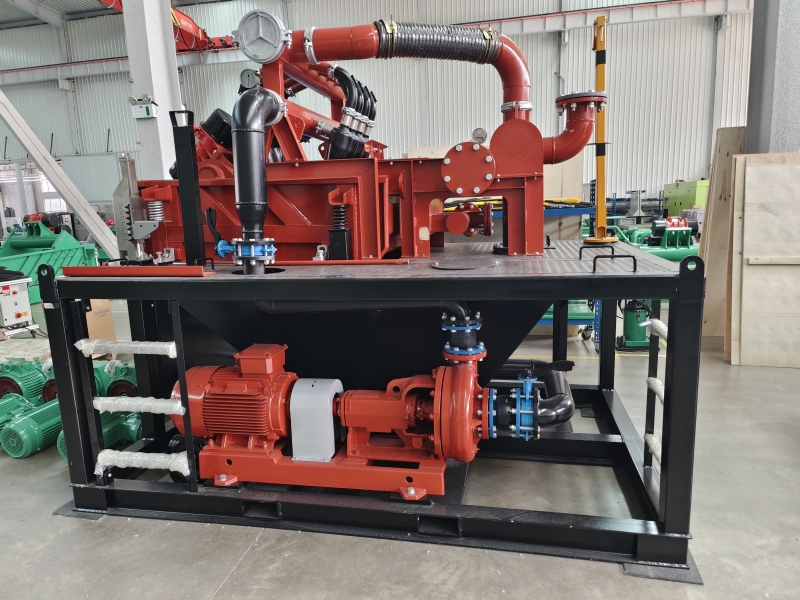

In the rapid development of trenchless technology globally, the Mud Recycling Unit (MRU) has become an indispensable piece of equipment for overseas trenchless projects. Today, let’s discuss the significant role and technical characteristics of this equipment in overseas trenchless projects.

The Importance of Mud Recycling Unit

In trenchless construction processes such as pipe jacking, directional drilling, and microtunnel boring machine (MTBM) applications, mud serves as a crucial auxiliary material. It functions as a lubricant, coolant, supporter, and carrier of soil particles. However, as the project progresses, the mud gradually becomes contaminated and diluted, losing its original properties. This is where the Mud Recycling Unit comes into play.

The Mud Recycling Unit effectively separates, purifies, and reuses discarded mud, significantly improving mud utilization and reducing project costs. Meanwhile, the recycled mud maintains good performance, ensuring smooth progress in trenchless construction.

Technical Characteristics of Mud Recycling Unit

Efficient Separation:

The Mud Recycling Unit employs advanced physical or chemical separation techniques to efficiently separate solid particles from the liquid in discarded mud, ensuring the purity of the recycled mud.

Intelligent Control:

The equipment is equipped with an intelligent control system that can continuously monitor the mud’s performance parameters such as density and viscosity, and automatically adjust based on needs, ensuring the stable quality of recycled mud.

Environmental Protection and Energy Conservation:

During the recycling process, the Mud Recycling Unit effectively reduces the discharge of discarded mud, minimizing environmental pollution. Additionally, the equipment itself is designed for energy conservation, lowering energy consumption.

Strong Adaptability:

The Mud Recycling Unit can adapt to different geological conditions and project needs, demonstrating strong adaptability and flexibility.

Application Cases in Overseas Trenchless Projects

In recent years, the Mud Recycling Unit has been widely applied in overseas trenchless projects. For instance, in a drainage pipeline renovation project in a Southeast Asian city, the Mud Recycling Unit was used to recycle and reuse discarded mud. Through practical operation, the equipment not only significantly improved mud utilization and reduced project costs, but also ensured smooth progress in construction.

Conclusion

As an essential piece of equipment in overseas trenchless projects, the Mud Recycling Unit, with its technical characteristics such as efficient separation, intelligent control, environmental protection, and strong adaptability, plays an increasingly significant role in trenchless construction. With the continuous development of trenchless technology, the application prospects of the Mud Recycling Unit will be even broader.

In the world of trenchless construction, mud recycling units play a crucial role in ensuring the smooth operation of horizontal directional drilling (HDD) and coalbed methane (CBM) drilling projects. GN Solids Control, a leading manufacturer in this field, offers top-notch mud recycling systems that have been trusted by numerous international projects.

The GN drilling mud recycling system is renowned for its versatility and reliability. Its extensive application in countries like Australia, Indonesia, and India speaks volumes about its performance and popularity. With the support of GN Solids America branch and GN Australia Partner, GN provides prompt service and spare parts from Beijing, Houston, and Brisbane, ensuring customers get the best support possible.

One of the standout features of GN HDD CBM Mud Recycling Equipments is its complete line of mud systems. From GNMS-200GPM to GN1500 GPM, these self-contained mud recycling systems cater to a wide range of project requirements. The cost-effective equipment integration, which includes all necessary drilling mud equipment from a single source—GN Solids Control Factory, further adds to its appeal.

The fast-moved compact system design is another plus. Its small footprint and quick-connect features for removable parts ensure smooth transportation while meeting all regulations. Fixed parts remain in place during travel, making setup and dismantling a breeze.

Customers can also rest assured about the service they receive. GN can send experienced engineers for installation and training, ensuring customers’ engineers are well-versed in the operation and maintenance of the mud recycling unit.

Moreover, GN offers flexible options for mud tanks, including skid-mounted, trailer-mounted, and hydraulic jack-up tanks. This flexibility allows customers to choose the most suitable option based on their specific needs and project requirements.

In conclusion, GN Solids Control’s mud recycling unit is a reliable and efficient solution for overseas trenchless projects. Its comprehensive features, cost-effectiveness, and customer-centric service make it a preferred choice for HDD and CBM drilling operations worldwide.

In the world of municipal sludge management, finding an efficient and environmentally friendly solution for sludge dewatering is crucial. GN’s latest product, The GNDL303 screw press is a perfect fit for this challenge, offering a cost-effective and sustainable approach to sludge dewatering in US municipalities.

The GNDL303 screw press utilizes the principle of screw extrusion to achieve solid-liquid separation. Through the powerful squeezing force generated by the varying screw diameter and pitch, as well as the minute gap between the floating ring and fixed ring, the sludge is compressed and dewatered. This process not only ensures efficient water removal but also reduces the volume of the sludge, making it easier to handle and transport.



The GNDL303 screw press comes equipped with a fully automatic control cabinet, flocculation modulation box, sludge thickening and dewatering device, and liquid collecting tank. The automatic control technology allows for fully automatic flocculation operation, continuously completing sludge thickening and squeezing. The collected filtrate liquid can then be recycled or discharged safely.



The advantages of the GNDL303 screw press are numerous. It is suitable for a wide range of sludge types, including oily sludge, and can operate continuously and automatically without the risk of clogging. Additionally, it boasts low investment and operation costs, as well as energy-saving and environmentally friendly features. Its compact design also minimizes the required footprint, making it a practical solution for space-constrained municipal facilities.



Lastly, the GNDL303 screw press can dewater sludge under aerobic conditions, which avoids the release of phosphorus from anaerobic sludge dewatering. This further enhances its environmental benefits and makes it a preferred choice for municipalities looking for a reliable sludge dewatering solution.



In conclusion, the GNDL303 screw press is an excellent choice for US municipal sludge dewatering,

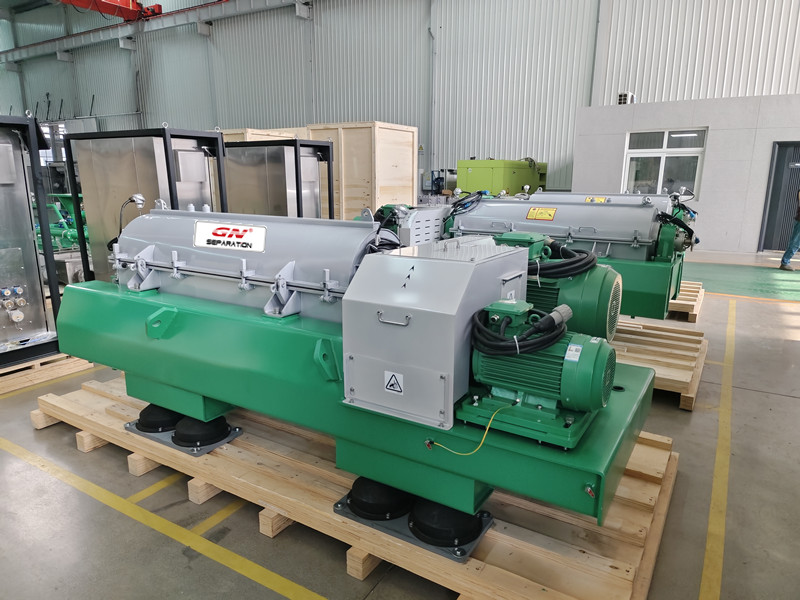

1.Project Background

With the acceleration of global urbanization, the treatment and disposal of municipal sludge has become one of the key challenges in environmental protection and sustainable development. In response to this issue, an overseas municipal sludge dewatering project has adopted the GNLW364 sludge dewatering centrifuges produced by GN Solids Control to improve sludge dewatering efficiency, reduce moisture content, and achieve the goals of resource utilization, reduction, and harmlessness of sludge.

2.Equipment Overview

Model and Quantity: GNLW364 sludge dewatering centrifuge, totaling 3 units.

Design Characteristics:

Single-unit Processing Capacity: 35m³/h

Design Critical Speed: 3900RPM

Regular Speed Range: 0-3200RPM

Critical Separation Factor: 3063G

Particle Separation Diameter: 2-5μm

Differential Gearbox Torque: 3500N.M

Main Motor Power: 37KW

Key Advantages:

The drum material is duplex stainless steel SS2305, outperforming industry standards.

The centrifugal casting process ensures a uniform drum texture with excellent dynamic balance performance.

The discharge port and the outlet of the screw conveyor are embedded with tungsten carbide hard alloy sleeves, providing high wear resistance.

The screw conveyor is embedded with wear-resistant alloy plates, ensuring a long service life and reducing maintenance frequency.

Controlled by a PLC panel, real-time monitoring of equipment status is possible.

3. Application Scenarios

The GNLW364 sludge dewatering centrifuges in this project are widely used in urban sewage treatment plants, industrial wastewater treatment plants, and other facilities. Through efficient centrifugal dehydration technology, the centrifuges quickly remove water from the sludge, reducing the moisture content and facilitating subsequent treatment and disposal.

4.Project Benefits

Improved Dewatering Efficiency:

The GNLW364 sludge dewatering centrifuges utilize advanced centrifugal dehydration technology to effectively remove water from sludge, significantly improving dewatering efficiency.

Energy Conservation and Environmental Protection:

No chemical agents are required during the dehydration process, reducing environmental pollution. Additionally, the equipment has low energy consumption, promoting energy conservation and emission reduction.

Easy Operation:

The equipment features an automated control system, simplifying operation and reducing labor costs.

Strong Adaptability:

The equipment is suitable for processing different types of sludge, demonstrating strong adaptability.

5. Conclusion

By adopting the GNLW364 sludge dewatering centrifuges produced by GN Solids Control, the overseas municipal sludge dewatering project has achieved the goals of efficient, environmentally friendly, and energy-saving sludge treatment. This not only contributes to improving local environmental quality but also facilitates the sustainable development of the city.

GN Solids Control Company Introduction

GN Solids Control is a professional manufacturer of solids control equipment, specializing in providing high-performance solids control solutions for the oil and gas exploration, drilling, and mining industries. The company upholds API certification as a quality assurance, committed to delivering high-quality solids control equipment and services to its customers. GN Solids Control boasts a wide range of products, including shale shakers, mud cleaners, centrifuges, and other key equipment, capable of meeting the needs of various customers.

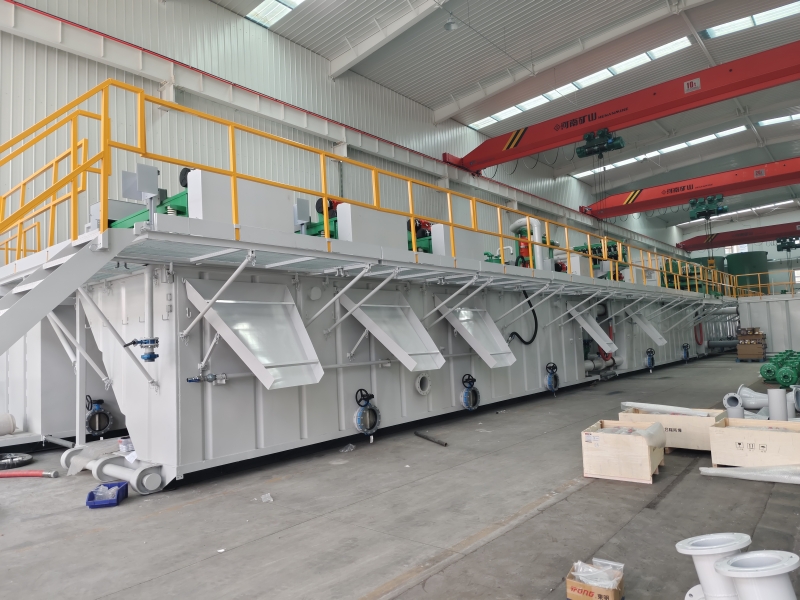

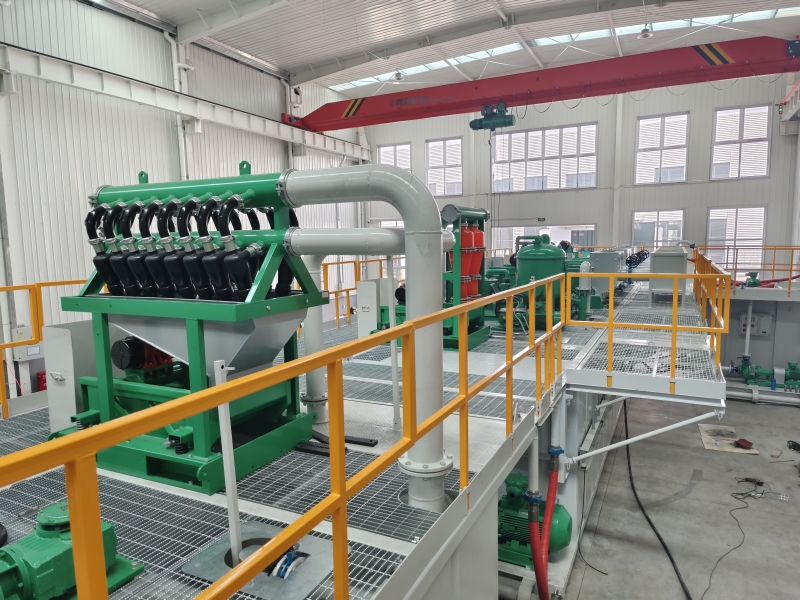

Overview of the 1,500 HP Drilling Mud Solids Control System Exported to Africa Project

Project Background:

With the continuous global demand for oil resources, oil exploration and drilling activities in Africa have become increasingly frequent. To meet the demand for efficient and reliable solids control systems in Africa, GN Solids Control has introduced the 1,500 HP drilling mud solids control system and successfully exported it to Africa.

Project Content:

The system primarily consists of shale shakers, mud cleaners, centrifuges, and other key equipment, possessing powerful solid-liquid separation capabilities. It can effectively remove solid particles from drilling mud, improving the recovery rate of drilling mud.

GN Solids Control’s shale shakers employ motors from renowned brands such as OLI (Italy) or Martin (USA), with heat-treated screens and a vibration intensity of up to 8.0G, meeting the requirements of various working conditions.

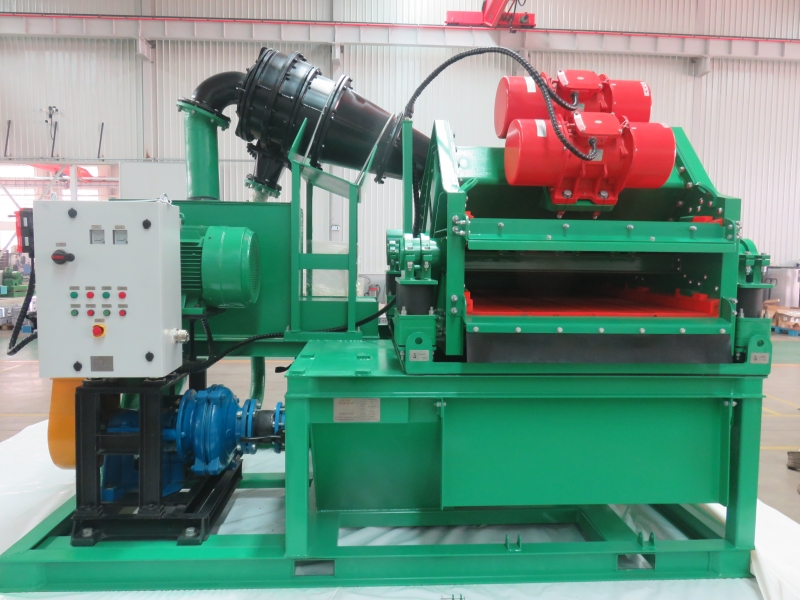

The mud cleaners integrate desander and desilter functions, achieving secondary and tertiary treatment of drilling mud for improved processing effects.

As one of the core equipment in the system, the centrifuge removes ultra-fine unwanted solids from drilling mud, enhancing the purity of the mud.

Project Characteristics:

High efficiency: The system boasts high solid-liquid separation capabilities, significantly improving the recovery rate of drilling mud.

Environmental friendliness: By reducing the discharge of drilling waste, it minimizes environmental pollution and complies with environmental protection requirements.

Reliability: The use of quality motors and electrical components ensures the stability and reliability of the system, reducing the failure rate.

Project Significance:

The successful implementation of this project not only demonstrates GN Solids Control’s professional technical strength in the field of solids control but also further enhances the company’s competitiveness in the international market.

For oil exploration and drilling activities in Africa, this system provides advanced solids control solutions, helping improve drilling efficiency, reduce drilling costs, and promote local economic development.

Through the successful implementation of this project, GN Solids Control will continue to provide high-performance solids control solutions for the global oil and gas exploration, drilling, and mining industries, driving the sustainable development of the industry.

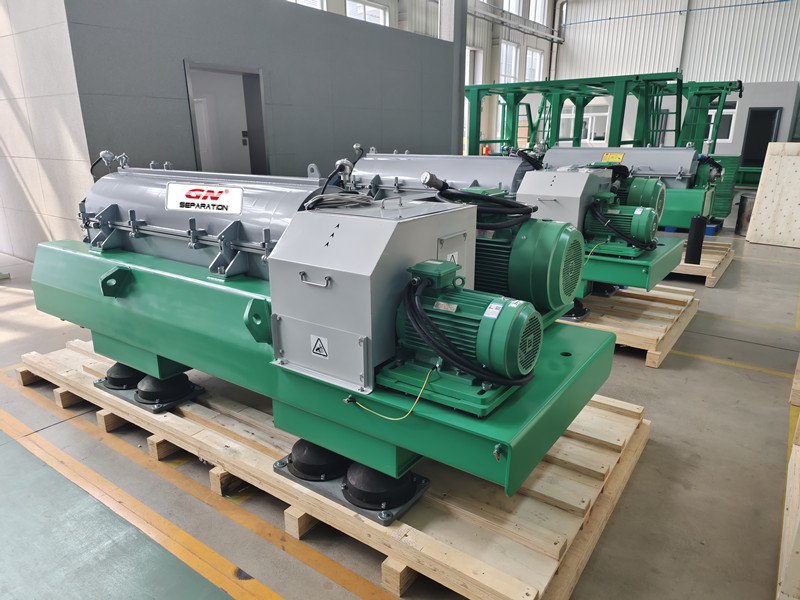

In the quest for efficient and sustainable solutions for municipal sewage treatment, GN Separation Equipment Co., Ltd. has emerged as a leading provider of industrial separation equipment. Recently, we were proud to supply 3 sets of GNLW364 Dewatering Decanter Centrifuges for an overseas municipal sewage treatment project.

The GNLW364 Dewatering Decanter Centrifuge is a T series decanter centrifuge with a beach angle of 8.5 degrees, designed for maximum efficiency in dewatering and thickening applications. This centrifuge is particularly suitable for the demanding requirements of municipal and industrial wastewater sludge treatment, where high dryness and clarity are paramount.

The GNLW364 Dewatering Decanter Centrifuge excels in separating materials with large particle sizes, high solid-liquid density differences, low viscosity, and high concentrations. Its high treatment capacity ensures that large volumes of sludge or wastewater containing fine particles can be processed efficiently. For materials with fine particles, the addition of flocculants is often required to aggregate the particles into larger ones, which can then be effectively dewatered using the T series decanter centrifuge.

At GN Separation, we pride ourselves on our ability to provide turnkey solutions for material dewatering processes. In addition to Dewatering Decanter Centrifuges, we offer a comprehensive range of separation and conveying equipment, enabling us to provide customized solutions that cover material transportation, classification, and dewatering.

As a subsidiary of Hebei GN Solids Control Co., Ltd., GN Separation has been a trusted name in the separation industry since 2007. Our three factories spanning 110,000 square meters in China, along with our branch offices in the United States and Australia, ensure that we can provide timely and comprehensive service to our global customers.

Holding National High-Tech Enterprise status, GN Separation maintains robust management systems and has been certified by the American API Quality Management System for 14 consecutive years since 2010. We also hold ISO9001, ISO14001, and ISO45001 certifications from the China Classification Society.

With our commitment to excellence and dedication to providing cutting-edge solutions, GN Separation remains the preferred choice for municipalities and industries seeking reliable and efficient dewatering solutions.
